Description

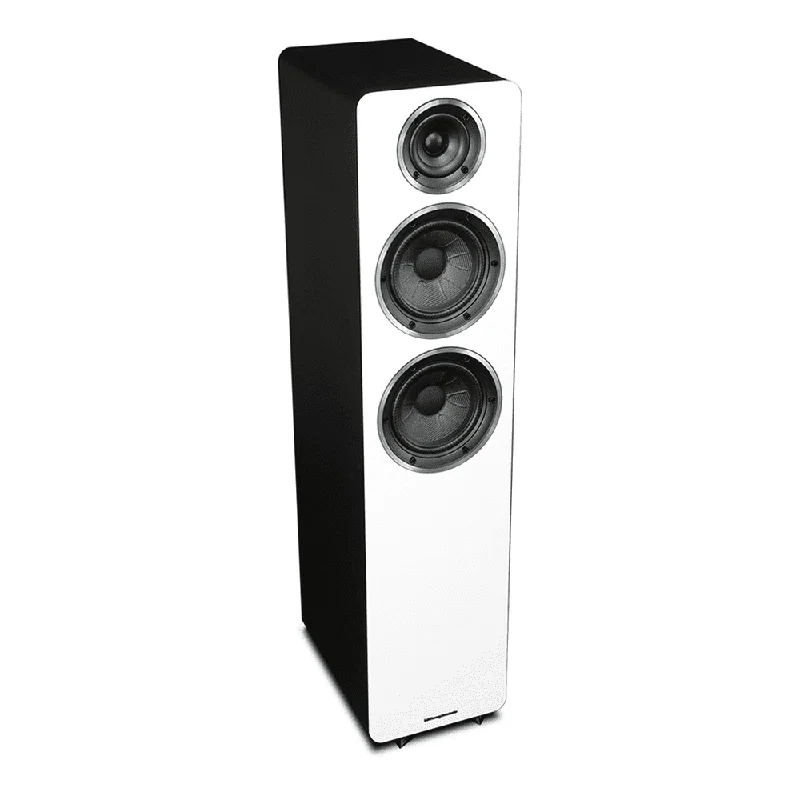

Diamond Active Series stereo speakers combine Wharfedales award-winning acoustic design with true wireless freedom for modern digital lifestyles
The Diamond Active Series from Wharfedale, Britains best-known loudspeaker brand, delivers wireless connectivity with a difference. Whilst not the first stereo speakers to offer integrated amplification and Bluetooth connectivity with compatible devices including smartphones, tablets and computers, our clever true wireless technology ensures greater flexibility than many such designs. This, combined with award-winning sonic know-how, delivers levels of convenience and performance that separate the Diamond Active Series from the rest of the wireless speaker crowd.
Technical Specifications
| Design Philosophy | – 5.8GHz True Wireless Technology – +/- 6dB Bass Control – Balance Function – Mode selector: Left/Mono/Right – Digital Amplifier with DSP |
| Digital Input | 1 x Coaxial 1 x Toslink Optical |
| Analog Input | RCA x 2 |
| Bluetooth Input | aptX (Priority), SBC |
| Input sensitivity | 350mV |
| Signal Frequencies | 5.2/5.8GHz wireless uncompressed |
| Sampling rate for digital inputs | Up to 24bit / 96kHz |
| Wireless reception distance | 20m |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| Drivers | 165mm Woven Kevlar Woofer x2 25mm Soft Dome Tweeter |
| System Power Output | 100W |
| Peak SPL | 96dB |
| Frequency response (+/-3dB) | 40Hz 20KHz |
| Bass extension (-6dB) | 35Hz |
| Crossover frequency | 2.8kHz |
| Speaker Finish | Black Leatherette with High Gloss White Black Front Baffle |
| Hub Finish | High Gloss Black with Touch Sensitive Display |
| Cabinet Volume | 38L |
| Height (on feet) | (912+25)mm |
| Dimensions (H x W x D) |
Speakers: (912+25) x 210 x (300+10)mm Hub: 28.8 x 150 x 156mm |
| Weight | Speakers Each: 18.8 Kg Hub: 0.46kg |
