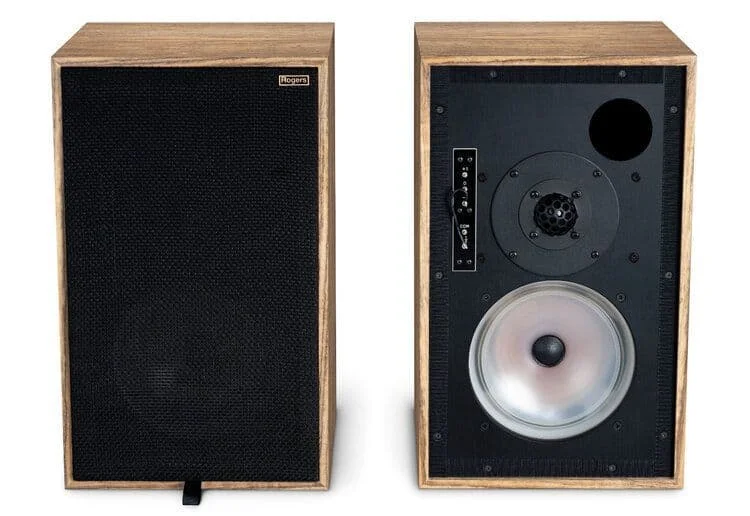

Rogers LS5/9 Classic
Meticulously manufactured in the UK to traditional BBC standards, the BBC-licensed Rogers LS5/9 Classic loudspeakers are popular with music lovers and recording studios alike.
- Constructed from the finest 9mm Birch plywood
- All joints are hardwood battened with beech fillets
- Balanced real wood veneers
- Cabinet walls critically damped with bituminous damping panels
- Beautiful black Tygan grille
- Walnut, Rosewood, and Olive finish as standard
- Other finishes to special order, please ask
The smallest of details dont make a small difference, they make all the difference
· Single wire, 4mm Multi-Contact sockets
· Sockets are silver-plated for the best connection
· Choice of beautiful real-wood veneers
· Cabinets handbuilt by master-craftsman
· Standard finishes: rosewood, walnut and olive
True to the source, true to the listener
With its high-frequency level adjustment (set by resistor jump links) for optimum pair matching, the Rogers LS5/9 Classic speakers are perfect for monitoring use in the mastering studio as they are for those who want the finest music reproduction at home.
Sometimes what you cannot see, is just as important as what you can
· Latest version of the 34mm Audax HD34 Tweeter
· Tweeter has been adapted by Rogers with the addition of a dispersion loading protective plate
· Midrange and Bass are handled by a Rogers specified 210mm woofer
· Critically flared polypropylene Mid/Bass cone is terminated by an inverted half roll of select vinyl
· Hand-finished and pair-matched in the UK
Not everything that matters can be measured, so listening to every element matters too
· Single layer one-ounce copper track fibreglass PCB
· High-quality dividing network uses ten reactive elements
· High-quality dividing network uses 17 resistors
· High voltage Metalised capacitors
· All components hand soldered with silver solder
· High-frequency level is set by resistor jump links:
– Ensures optimum pair matching
– Eessential for monitor use
Technical Specifications
| System type: Two way bass reflex |
| Tweeter: Audax 34mm with phase correction |
| Mid/Bass: Rogers 210 mm polypropylene cone vinyl surround |
| Crossover: 3KHz 27 precision element 18dB per Octave |
| Sensitivity: 87dB for 1W at 1M |
| Nominal Impedance: 8 Ohms |
| Power handling: 100 Watts unclipped |
| Maximum SPL: 106 dBA typical in room |
| Cabinet: 9mm Birch plywood hardwood battens |
| Grille: Black Tygan |
| Finish: Walnut, Rosewood and Olive |
| Connections: Stereo pair 4mm banana sockets |
| Dimensions: 460mm x 275mm x 285mm (HxWxD) |
| Weight: 12Kg (each speaker) |
| BBC-licensed |
Custom veneer and RAL finishes available at additional cost. Please contact us at [email protected] or 01333 425 999 to discuss.
