Description

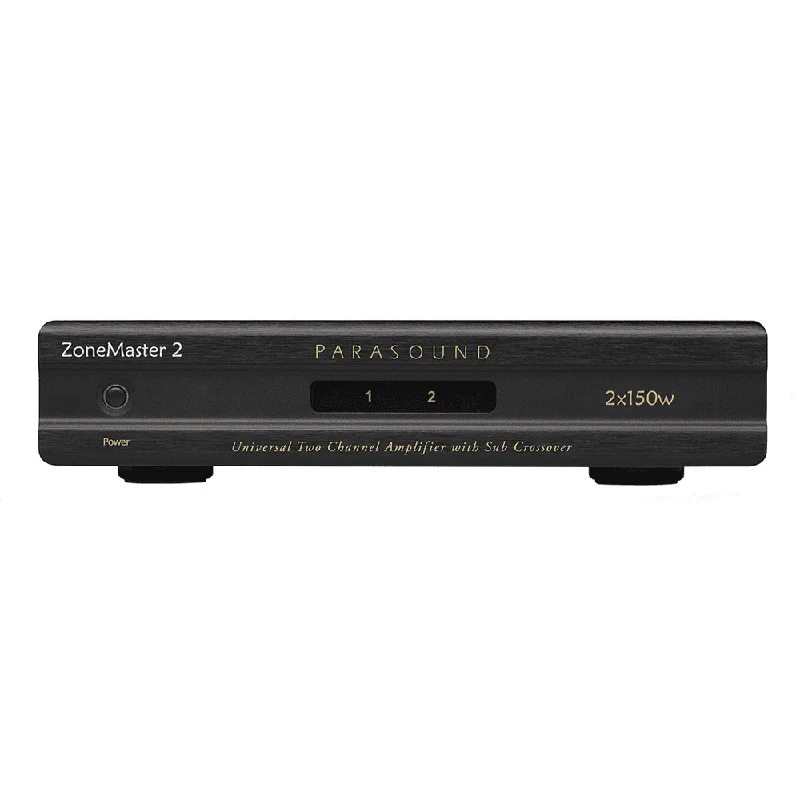

Introducing ZoneMaster, Parasound’s new line of high-performance amplifiers for custom installation. ZoneMaster amps combine legendary Parasound Class AB sound quality with the most reliable Class D power modules in the industry. Every model in the line is unconditionally stable at two ohms, with bridged power up to 200 watts and unprecedented versatility. ZoneMaster is the new standard in residential and commercial amplification.
Features
- 120 watts x2 @ 8
- 150 watts x2 @ 4 or 2
- 4 speaker connections (A and B outputs for both channels)
- High current for stable operation at 2 Ohms
- Class AB input stage plus premium Class D power stage
- Audio sensing auto-on trigger
- 12 volt auto-on trigger input
- Looping 12 volt trigger output
- Speaker level input for expanding systems w/out pre out jacks
- Looping output to connect additional amplifiers
- Mono mode combines L and R for single speaker applications
- Separate level controls for both channels
- Detachable speaker connectors accept up to 12 gauge wire
- Short circuit and overheat protection with front panel indicators
- 0.5 watt standby power consumption meets Energy Star & EU specs
- ZoneMaster 2 Specific Features
- Compact 1u, 1/2 width chassis size
- Full Range Mono RCA Output
- 80Hz low pass Mono RCA output (for sub)
- Built in 80Hz low pass filter in bridged mode
- for driving in-wall/in-ceiling woofers or passive sub(s)
