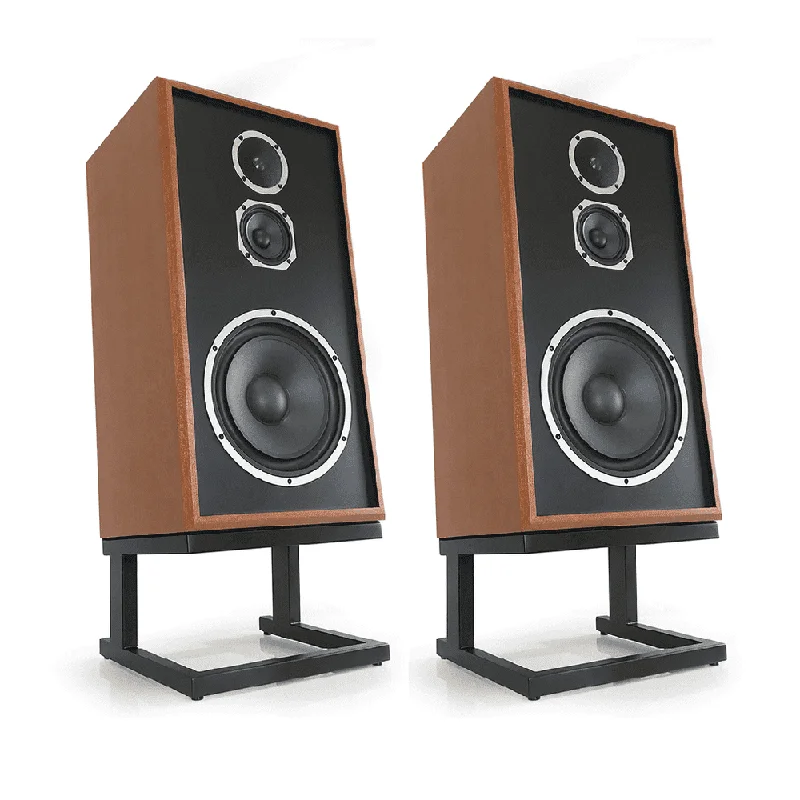

KLH Audio Model Five Loudspeakers (Pair)

Description

Full Editors Choice Review : here

3-way, 10 Acoustic Suspension Loudspeaker
The legendary KLH Model Five was first introduced in 1968 and served as the heart and soul of KLHs success throughout the late 1960s and 1970s. At its core was the acoustic suspension design that dominated the loudspeaker industry for decades and made the Model Five one of the best-selling loudspeakers of its era. In 2021, KLH re-introduced the Model Five; building on the original acoustic suspension design and using the most advanced loudspeaker technology available today.

Feature

• Iconic Mid-Century Modern Styling
• 90db Sensitivity.
• Acoustic Suspension Design The most accurate and linear enclosure design available today
• Three-Position Acoustic Balance Control to tailor the loudspeakers output for the most difficult acoustic environments
• Dedicated midrange driver to reproduce the critical mid-frequency band
• Non-Resonant Die-Cast Aluminium Midrange & Woofer Frames
• Machined Aluminium 1 tweeter faceplate
• KLH cabinetry featuring a structurally reinforced 34 MDF Enclosure
• Thirteen Component network using high quality iron-core inductors & Mylar capacitors
• Each speaker includes its own 5 slant riser base made of powder coated 14-gauge steel
• Low-Profile Magnet Attached Grille 10-Year Warranty
• What’s in the Carton:
  Model Five Loudspeaker
  Matte Black Slant Riser Base
  Owners Manual

• Frequency Response: 42Hz 20,000Hz +/- 3dB
• Low Frequency Extension: -10dB @ 32Hz In-Room
• Sensitivity: 90.5dB @ 2.83V / 1M Free-field
• Sensitivity: 87.5dB @ 2.83V / 1M
• Power Handling: 200 Watts / 800 Watts Peak
• Recommended Amplification: 20 Watts to 200 Watts
• In-Room Maximum SPL: 112.3dB
• Maximum Output @45Hz: 1 106dB
• Impedance: 6 Ohms (3.5 ohm minimum @140 Hz)
• Horizontal Dispersion: 140° Degrees
• Features: Three-Position Acoustic Balance Control
• Crossover Frequency: MF: 380Hz (2nd Order Electro-Acoustic) HF: 2,850Hz (2nd Order Electro-Acoustic)
• High Frequency Driver: 1″ Aluminum Dome with Soft Rubber
• Suspension Mid Frequency Driver: 4″ Pulp-Paper Cone with Reverse Roll Rubber Suspension
• Low Frequency Driver: 10″ Pulp-Paper Cone with Reverse Roll Rubber Suspension, 2″ Diameter
• Flat-Wire Voice Coil Enclosure Material: Structurally Reinforced ¾” Medium Density Fiberboard
• Inputs: Five-Way Gold-Plated Binding Posts
• Height: 34.25″ (87.0cm) w/ Included Riser Base 26.0″ (66cm) w/o Riser Base
• Width: 13.75″ (35.0cm)
• Depth: 13.0″ (33.0cm) w/ Included Riser Base 11.5″ (29.2cm) w/o Riser Base
• Weight: 44Ibs. (20.0kg) w/o Riser Base 52Ibs. (23.6kg) w/ Included Riser Base
• Included Accessories: 5° Slant Riser Base

Review Links

Read the full Stereophile Review by Ken Micallef here.
