Description

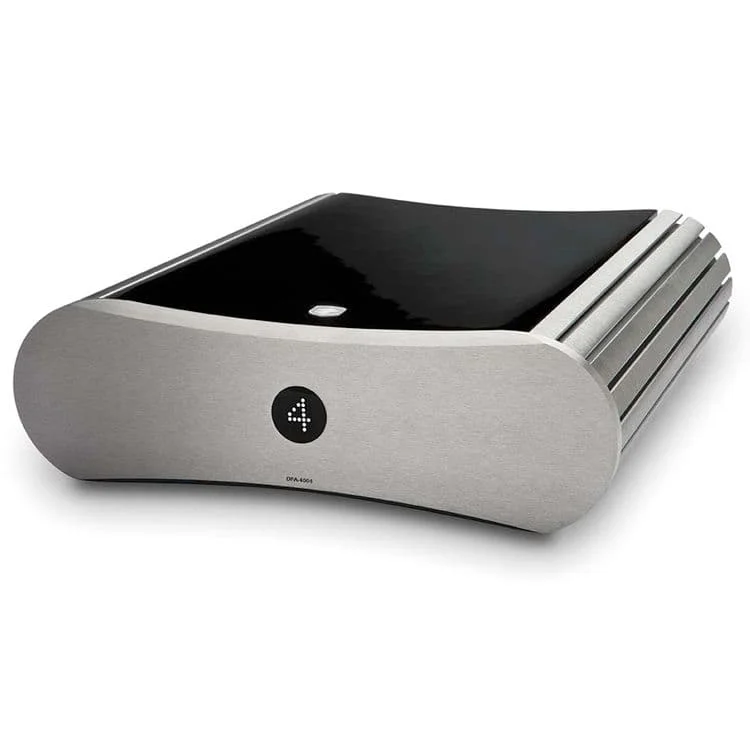

The four-channel Gato Audio DPA-4004 is a flexible solution that offers a variety of options and combinations with the number of power output channels. A feature of the amplifier is to use modern technology to build the Class-D output stages , which in combination with a bridge connecting channel enables the production of high output power with a compact and elegant design.
Real power
The Gato Audio DPA-4004 provides at least 4x400W under 8 Ohm load, and at 4 ohms the value of channel capacity doubles. Each pair of channels in the amplifier can be connected in a bridge circuit, allowing individually configured power for multi-channel systems, or bi-amping speakers. The most obvious candidate to work in conjunction with the DPA-4004 is the award winning Gato Audio PRD-3 pre amp/dac, but the new model can also accompany the DIA-250/400 integrated amplifier, offering more channels and flexibility in terms of channel capacity. In multichannel systems, the DPA-4004 can serve to enhance the surround sound processor signals, possibly in combination with PRD-DIA-250/400 in the “Home Theater” mode.
Class-D with true ‘analogue’ audio
The DPA-4004 is a technically advanced solution in the form of Class D output stages with a separate power supply. The amplifying part is built on proven technology, with an optimized precision high-frequency generator and PWM modulator. Fast and accurate switching MOS-FET transistors have a very low on-state resistance, providing superior performance at high frequency with a minimal loss. Output filters on quality polypropylene capacitors and coils with low resistance convert powerful PWM signals back into analogue for an immersive detailed and textured sound.
Specifications:
| Output power (230 VAC) | 4x 400W / 2x 800W / 1x 800W 250W + 2x / 2 x 400W @ 8 ohms or 4x 800W / 2x 1600W / 1x 1600W + 2x 800W @ 4 ohms |
| Frequency | 20 Hz – 20 kHz ± 0.5 dB 2 Hz – 70 kHz ± 3 dB |
| CED (power amplifier) | <0.01% |
| S / N ratio | > 110 dB |
| Input resistance | 20 k RCA or 40 k (balance). |
| Strengthening | 26 dB |
| Recommended Load Impedance | SE 4 -16 , BTL 8 -16 |
| Switching | |
| Balanced analog inputs | 2 pairs of gold-plated XLR (Neutrik) |
| Unbalanced analog inputs | 2 pairs of gold-plated RCA (Stereo) |
| Acoustic Outputs | 4 pairs of gold-plated terminals (banana) |
| Trigger 12 | 1 mini jack |
| Dimensions and Power | |
| Power Requirements | 115 VAC / 230 VAC, 50 Hz / 60 Hz |
| Power consumption | Standby <1W, Idle <75>Max. <2000> |
| Dimensions (WxHxD) | 325 x 105 x 390 mm /12.8 x 4.1 x 15.4 “ |
| Weight | 13kg |
