Description

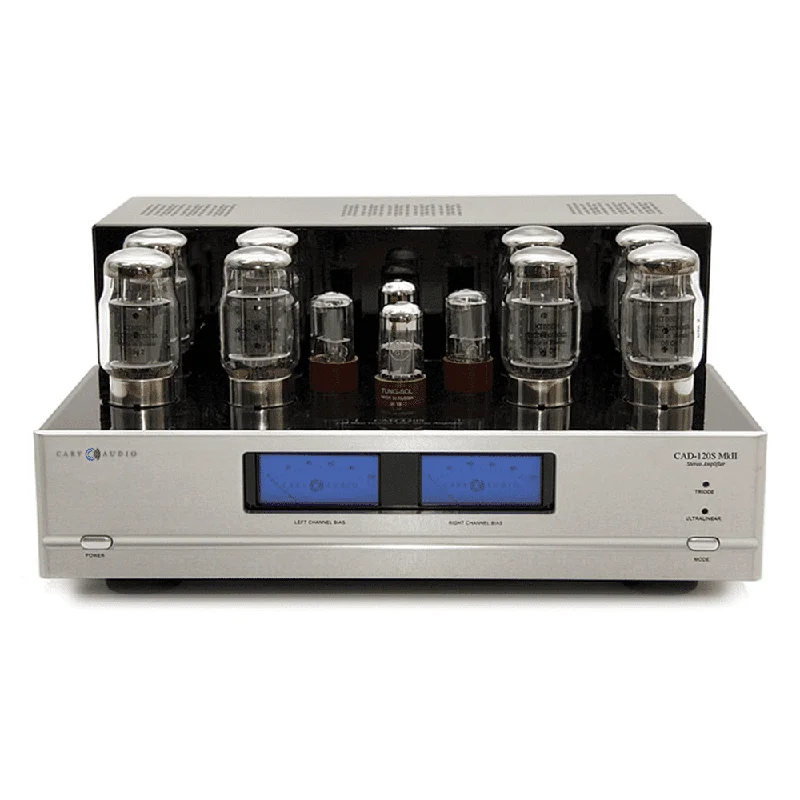

Cary Audio has almost always offered stereo tube power amplifiers, and the CAD-120S MkII is the latest in this long line of award-winning, top-rated amplifiers. The new MkII version of our most popular power amplifier features a boosted sensitivity and reduced level of global feedback, allowing it to be used with a wider variety of other preamplifiers to produce a larger soundstage with more apparent musical detail.
Fully differentially-balanced, like most Cary Audio products, the CAD-120S MkII offers both RCA single-ended and XLR balanced inputs to match any associated equipment. Front panel meters continually monitor the bias current to the tubes, helping you easily keep the amplifier operating at its peak efficiency. A huge power supply provides plenty of current storage to handle peak demands of your music. It can be switched on the fly from triode mode (Class A) at 60 watts per channel, to ultralinear mode (Class AB) at 120 watts per channel. This lets you enjoy the greatest possible minute details of your more delicate music, or ask for much more power when you want to turn it up a few notches. The CAD-120S MkII can make almost any system sound its very best in your home.
So whether you want to hear your Blues, Jazz and Classical with the most beautifully rendered images, or you want the harder-hitting dynamic aspects of rock and pop to show you their full glory, then the Cary Audio CAD-120S MKII will give you both with complete musical aplomb…….
- Circuit Type Class AB, push-pull amplifier, Ultralinear or Triode mode operation with a front panel selector switch
- Power Output Ultralinear 120 watts per channel
- Triode 60 watts per channel
- Inputs XLR balanced or RCA single-ended
- Noise and Hum -80 dB
- Input Impedance 100K both RCA and Balanced
- Frequency Response 17 Hz 25 KHz flat @ 1 watt
- Tubes 2 6SN7 input gain stage
- 2 6SN7 driver tubes
- 8 KT 88 output tubes
- Power Transformer EI High voltage & bias supply EI laminate
- Output Transformer(s) Special bifilar wound 150 watt rating unit in each channel
- Gain 28 dB
- Sensitivity 1.24v
- Power Supply Capacitors 4 x 560µF
- Speaker Posts Cary gold plated copper, 5-way binding
- AC Cord 3 Conductor Shielded, Detachable
- AC Power Requirements 117 VAC @ 50/60 Hz
- 234 VAC @ 50/60 Hz
- Warm-Up Time 3 Minutes
- Break-In Time 100 hours of playing time
- Finish Anthracite black chassis with silver or black aluminum faceplate
- Weight 65 lbs
- Dimensions 8 H x 17 W x 14 D
