Description

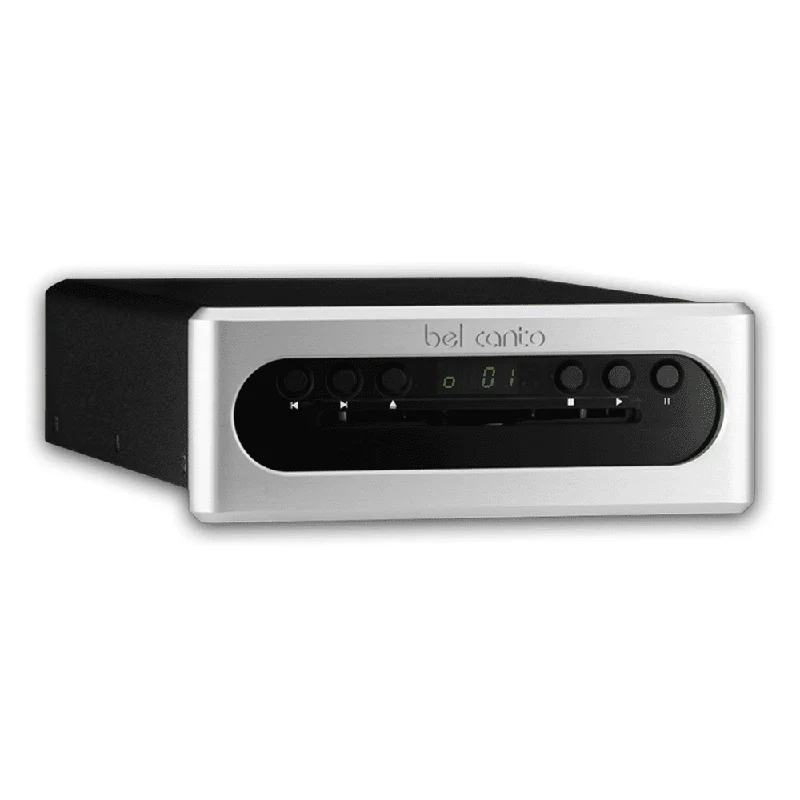

The CD3t CD transport provides the most direct digital path to your Digital to Analog converter with a convenient slot load drive.
Front Panel Control
Easy to Read 4 Character Display
2 Digital Outputs: SPDIF and AES/EBU
Remote Control
Available in Silver or Black Faceplate.
Features
Bel Cantos e.One CD3t plays your CD, CDR, CDRW collection with accuracy and simplicity. Connect to your DAC Preamp using AES/EBU XLR, SPDIF BNC (RCA adaptor included) for an accurate data transfer of 44.1kHz/ 16bit.
Technical Specification
| Disc Compatibility | CD-DA (Red Book IEC908) CD-R and CD-RW discs |
| Maximum Data Rate/Bit Depth | 44.1kHz/16bit |
| Digital Output types | AES/EBU, XLR, SPDIF |
| AES/EBU Digital Output Level | 3V p-p, 110 ohms 44.1K samples/second |
| SPDIF Digital Output Level | 0.6V p-p, 75 ohms 44.1K samples/second |
| Additive jitter | < 100 pS RMS |
| Power Draw | 4W |
| Sleep Mode power | <0.5W |
| Power Requirement | Internally set for 100, 120, 220 or 240VAC; 50 or 60 Hz |
| Dimensions (W x D x H) | 216 mm x 318 mm x 88 mm |
| Weight | 8.2 kg |
