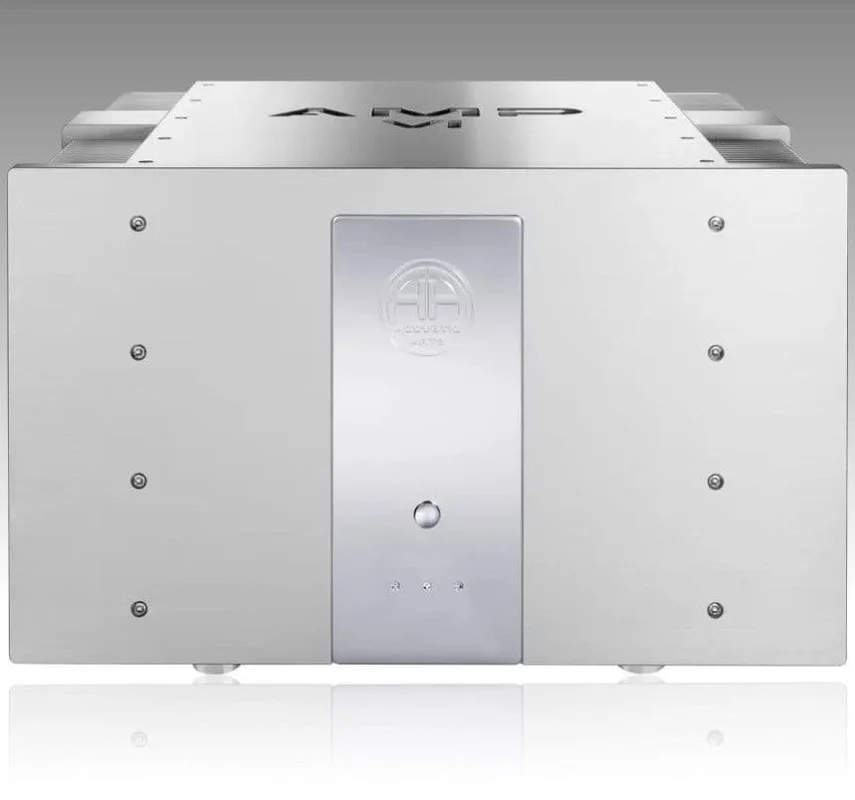

Accustic Arts AMP VI ULTRA POWER – Statement Class Power Amplifier

Description

Accustic Arts AMP VI ULTRA POWER – Statement Class Power Amplifier

Accustic Arts bring to market a true Statement Level Stereo Power Amplifier that redefines what is achievable in the segment.

A sonic that is both gloriously rich, deep and organic, mated to the perfect balance of dynamic drive and energy and just the most staggeringly holographic soundstage that has ever graced the design studios in Lauffen, Germany.

This is Accustic Arts new benchmark in Stereo Power Amplifier performance circles……..

AMP VI ULTRA POWER highlights

• In response to numerous customer requests for more power, we have once again increased the output power of our statement power amplifier
• Dual-mono statement power amplifier with completely isolated power supply for each amplifier channel
• 40 selected MOS-FET output transistors of highest quality
• 2 magnetically shielded and encapsulated toroidal core transformer of premium quality for highest output reserves
• Gold-plated contact surfaces (components) improve the contact resistance of the AMP VI
• Optimum smoothing thanks to more than 220,000 µF power supply capacity; premium quality capacitors (Made in Germany)
• Very high damping factor for perfect speaker control
• ACCUSTIC ARTS® damping factor linearization (switchable)
• Professional protective circuit against clipping, HF oscillations and too high DC offset
• Integrated switch-on current limitation for highest operational safety
• Balanced Input (XLR) and unbalanced input (RCA)the inputs are switchable
• All used components and parts are selected and of highest quality
• Very high quality, gold-plated bi-wiring/bi-amping speaker terminal
• Extremely stable and resonance optimized, massive aluminium housing; inlay made of massive, high gloss polished and chromed brass
• ACCUSTIC ARTS® AMP VI is Handmade in Germany

AMP VI ULTRA POWER  Specifications

Voltage gain:

• 30.0 dB

Power consumption without load:

• approx. 240 watts

Power supply capacity:

• approx. 220,000 µF

Input resistance:

• balanced (XLR): 2 x 16 k
• unbalanced (RCA): 15 k

Rated power output (THD+N = 0,1%):

• > 2 x 1,600 watts on 2
• > 2 x 1,500 watts on 4
• > 2 x 950 watts on 8

Frequency response:

• 10Hz50 kHz +0/-0.5 dB
• (at 10 watts on 4 )

Damping factor:

• > 500 at 1 kHz 10 W on 4

Signal to noise ratio:

• -96 dBA (ref. 6.325 V)

Crosstalk:

• 105 dB with 1 kHz

Min. loudspeaker impedance:

• 2

Distortion (THD+N):

• 0.003 % on 4load at 1 kHz and 10 watts

Dimensions (H x W x D)

• 328 x 530 x 545 mm / 12.9 x 20.9 x 21.5 inches

Weight:

• approx. 82 kg / 180.4 lbs
• + 22 kg / 48.5 lbs flight case
